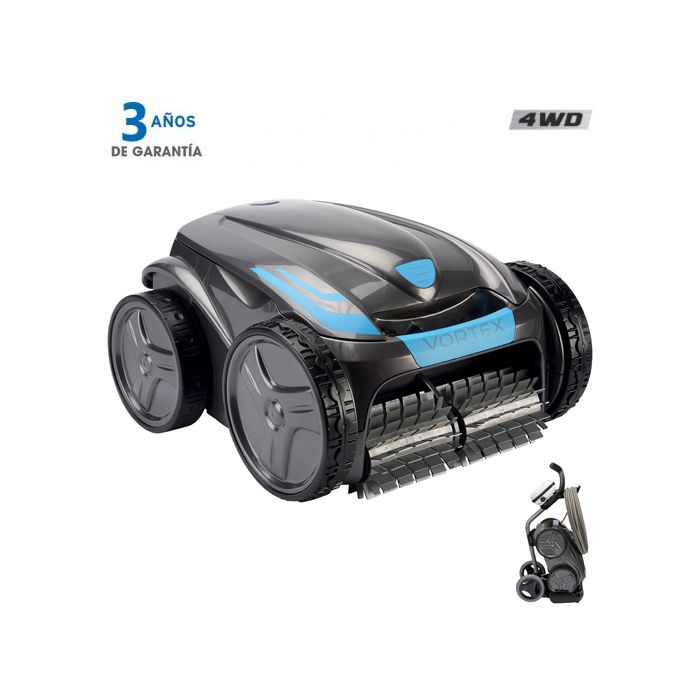

Pool cleaner Zodiac OV5200 4WD
Zodiac OV 5200, the pool cleaner with the maximum power in 4x4 version, thanks to its 4x4, this robot cleans the bottom, the walls and the water line of your pool up to 18 meters.
Manuals
Maximum performance with its constant and ultra-powerful cyclonic suction
Zodiac® patented cyclonic suction and were the first to create the first cleaning products on the market with this type of suction.
Thanks to the creation of a of a high-powered suction system that originates inside the robot's filter. the fastener is kept in suspension, preventing it from adhering to the walls of the OV5200 < / strong> avoiding clogging and potentially improving the performance of the cleaning cycle.
All-terrain cleaner thanks to its traction on 4 wheels
O Robô OV5200 has 4 driving wheels that allow the cleaner to perfectly adhere to the pool walls, and thanks to this feature it is capable of adapt to any type of lining and overcome obstacles more easily..
Large suction capacity
O pool cleaner OV 5200 can guarantee a perfect cleaning on a large scale. . Thanks to its extra-long suction nozzle and its 5-liter capacity filter, the vacuum cleaner can vacuum and store all types of debris with maximum ease of use. In addition, it maintains the suction power throughout the cycle.
Accessories included
Filter Complete Indicator
Tells us when it is necessary to empty the filter.
Control unit
Filter
Large capacity of 5 liters and easy to clean.
Transport Trolley
Optional Accessories
Request information if you are interested:
Very fine debris filter, fine debris filter, coarse debris filter and protection screen.
| Number of engines | 3 |
| Cleaner dimensions | (L x W x H) 48 x 43 x 43 x 27 cm |
| Cleaning weight | 9,5 kg |
| Filtration surface / filtration level | 1180 cm² / 100μ |
| Cleaning coverage | 24,5 cm |
| Cable compression | 18 m |
| Cleaning Cycles |
1h30 (only farm) 2h30 (floor, walls and waterline) |
| Traction System | 4 driving wheels |
| Transmission | Gears |
| Security | Praia system, automatic out-of-water shutdown, electronic engine protection. |
Comparison of the Zodiac OV pool cleaner box
*Role horizontally to see the complete table
 |
 |
 |
 |
 |
 |
|
| Zodiac OV3400 | Zodiac OV3480 | Zodiac OV3505 | Zodiac OV5200 | Zodiac OV5300 | Zodiac OV5480IQ | |
| Code | WR000024 | WR000166 | WR000152 | WR000223 | WR000162 | WR000264 |
| Pool measurement | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m |
| Cleaning Area | Grounds, walls and water line |
Land, walls and water line |
Land, walls and water line |
Land, walls and water line |
Land, walls and water line |
Land, walls and water line |
| Cleaning cycles | 1 | 2 | 6 | 2 | 2 | Multiple Cycles |
| Traction rollers | 2 | 2 | 2 | 4 | 4 | 4 |
| Complete filter indicator | No | Yes | No | No | Yes | Yes |
| Remote control | No | No | Yes | No | No | Yes, Through App |
| Cape Compression | 18 m | 18 m | 18 m | 18 m | 18 m, with swivel | 18 m, with swivel |
| Warranty | 2 years | 2 Years | 2 Years | 3 Years | 3 Years | 3 Years |
*It is not possible to guarantee the correct functioning of the equipment in the lower part as well as in the upper part of the walls, if the pH level is not correct, if there is not enough water, if there is not enough algae or algae or if the filters are clogged by excess of water, and this has not been done before a total cleaning of the glass, as well as irregular surfaces in the walls, as degraus or nerves.
Warranty information
3-year warranty for motors, transformer and cable according to their conditions.
