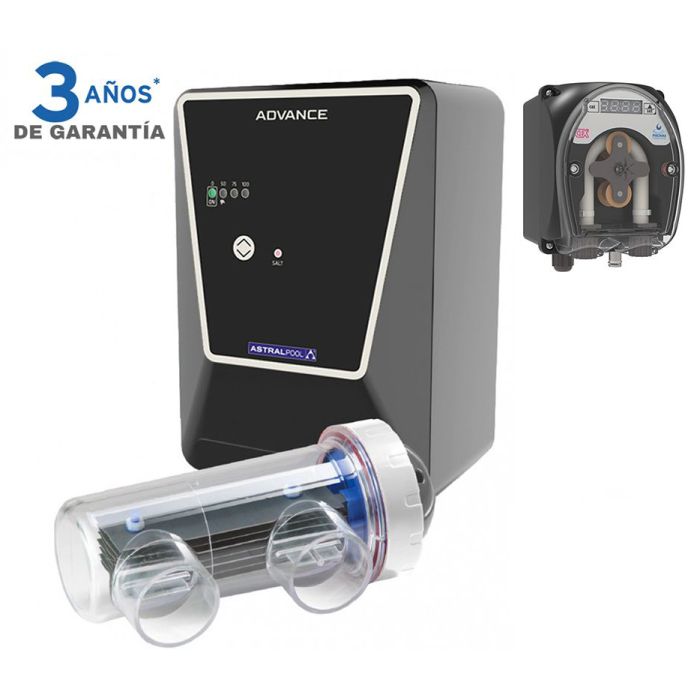

Advance Salt Chlorinator + pH Pump Astralpool
The new Advance Salt Chlorinator from Astralpool is easy to use and install in any installation, it automatically de-inflates pools of 180 m3, + low-cost peristaltic pH dosing pump.
The Advance is available in 5 different models adapting to the needs of your pool.
The Astralpool Advance is guaranteed for 3 years.
Manuals
E-Pro CTX Peristaltic pH Pump Installation Manual
E Series pH Peristaltic Pump Brochure
NEW SALT CHLORINATOR + PH PUMP ADVANCED MODEL BY ASTRALPOOL EXCLUSIVE IN FERROMAR POOLS !
Features of the Salt Chlorinator Advance AstralPool with 3 years of warranty
Thanks to its compact design, the Advance Salt Chlorinator can be installed in almost any type of installation, even in places with higher humidity, thanks to its IP45 waterproof case. In addition, the gas detector provides greater safety and facilitates its use, since it interrupts the chlorination in case of lack of vacuum and the chlorinator warns if the salt level is low by means of an alarm.
Features
- Very compact power source (25x20x14 cm), able to chlorinate pools of up to 180m 3 thanks to its production of 7 to 40 g / h.
- U-shaped cell with technical grade electrodes: from 8,000 to 10,000 hours
- Pool cover contact to reduce chlorination when the cover is closed (10%)
- Gas sensor in the cell to detect no-flow situations
- Simple user interface with button and LED for chlorine production and one "salt" LED
- 3 year extended warranty
About the pH pump
Its features make it the most competitive peristattic dosing pump in the market, including digital display, scorva button and pH probe.
- Power supply source 90 ÷ 265 Vac
- 4-digit, 7-segment display
- Bnc connector for the pH meter
- 3 position Priming, ON, Stand by switch
- Flow rate of 1,5 L / h at 1,5 bar
- pH measurement range: 6 ÷ 8 pH (sensitivity: 0.1 pH)
- ON-OFF dosing method (adjustable set point)
- 1-point pH calibration method
Salt Chlorinator Astralpool Advance and Celula
Salt electrolysis installation
Dimensions Astralpool E-Next Salt Chlorinator and Cell
Comparison of Astralpool Advance Chlorinators
*Role horizontally to see complete table
 |
|
|
|
|
|
| Advance 7 | Advance 12 | Advance 21 | Advance 30 | Advance 40 | |
| Reference | 74539 | 74540 | 74541 | 74542 | 74543 |
| Maximum Chlorine Production | 7 g/h | 12 g/h | 21 g/h | 30 g/h | 40 g/h |
| Number of Plates | 3 | 5 | 7 | 11 | 13 |
| Volume of water | 30 m³ | 50 m³ | 90 m³ | 140 m³ | 180 m³ |
| Cell life time (under ideal conditions) |
Tech grade: from 8000 to 10.000 hours | ||||
| Electrical voltage | 230 V / 50 / 60 Hz | ||||
| Fuse | 2 A | ||||
| Amperage | 0,2 A | 0,4 A | 0,4 A | 0,8 A | 0,9 A |
| Salinity | 4-6 g/L (min./max. = 4-10 g/L) | ||||
| Water temperature | Max. 40 ºC | ||||
| Polarity inversion | Yes (2-3h) | ||||
| Production control | 0 / 50 / 75 / 100% | ||||
| Flow detection (gas) | Sim | ||||
| Coverage production control | Yes (Production reduction to 10%) | ||||
| Salt level alarm | Yes | ||||
| Pipe connection | Adhesive PVC Ø 63 mm | ||||
| Maximum authorized cell pressure | 2,75 bar (KPa) | ||||
| Protection index | IP45 | ||||
Warranty information
* Manufacturer's warranty of 2 years + 1 additional year for Ferromar Swimming Pools for salt chlorinator and 2 years for pH dosing pump, except pH probe, according to its conditions.
