Salt Chlorinator Advance Astralpool
The new Advance Salt Chlorinator from Astralpool is easy to use and install in almost all installations, automatically de-inflates pools up to 180 m3 and is also compatible with pH control equipment that can be retrofitted.
The Advance is available in 5 different models adapting to the needs of your pool.
The Astralpool Advance salt chlorinator offers a 3 year warranty.
Manuals
NEW ASTRALPOOL ADVANCE SALT CHLORINATOR EXCLUSIVE IN FERROMAR POOLS!
Features of the Advance salt chlorinator by Astralpool
Thanks to its compact design, the Advance Salt Chlorinator can be installed in almost any type of installation, even in places with higher humidity, thanks to its IP45 waterproof case. In addition, the gas detector provides greater safety and facilitates its use, since it interrupts the chlorination in case of lack of vacuum and the chlorinator warns if the salt level is low by means of an alarm.
Features
- Very compact power source (25x20x14 cm), capable of chlorinating pools of up to 180m 3 thanks to its production of 7 to 40 g / h.
- U-shaped cell with technical grade electrodes: from 8,000 to 10,000 hours
- Pool cover contact to reduce chlorination when the cover is closed (10%)
- Gas sensor in the cell to detect no-flow situations
- Simple user interface with button and LED for chlorine production and one "salt" LED
- 3 year extended warranty
Salt electrolysis installation

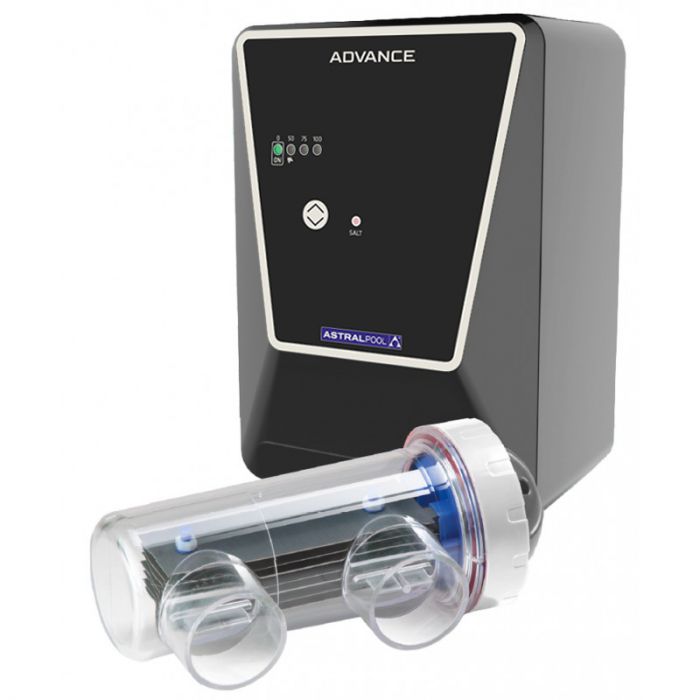

Astralpool Advance Salt Chlorinator and Cell
Dimensions of Astralpool E-Next Salt Chlorinator and Cell
Comparison of Astralpool Advance Chlorinator Range
*Role horizontally to see complete table
 |
|
|
|
|
|
| Advance 7 | Advance 12 | Advance 21 | Advance 30 | Advance 40 | |
| Reference | 74539 | 74540 | 74541 | 74542 | 74543 |
| Maximum Chlorine Production | 7 g/h | 12 g/h | 21 g/h | 30 g/h | 40 g/h |
| Number of Plates | 3 | 5 | 7 | 11 | 13 |
| Volume of water | 30 m³ | 50 m³ | 90 m³ | 140 m³ | 180 m³ |
| Cell life time (under ideal conditions) |
Tech grade: from 8000 to 10.000 hours | ||||
| Electrical voltage | 230 V / 50 / 60 Hz | ||||
| Fusível | 2 A | ||||
| Amperage | 0,2 A | 0,4 A | 0,4 A | 0,8 A | 0,9 A |
| Salinity | 4-6 g/L (min./max. = 4-10 g/L) | ||||
| Water temperature | Max. 40 ºC | ||||
| Polarity inversion | Yes (2-3h) | ||||
| Production control | 0 / 50 / 75 / 100% | ||||
| Flow detection (gas) | Sim | ||||
| Coverage production control | Yes (Production reduction to 10%) | ||||
| Salt level alarm | Yes | ||||
| Pipe connection | Adhesive PVC Ø 63 mm | ||||
| Maximum authorized cell pressure | 2,75 bar (KPa) | ||||
| Protection index | IP45 | ||||
Warranty information
* Manufacturer's warranty of 2 years + 1 additional year for Ferromar Pools according to their conditions.
