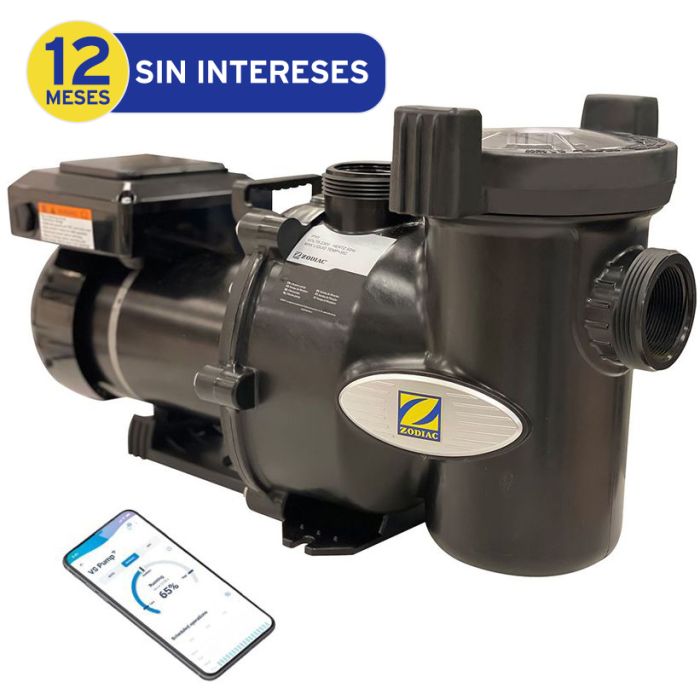

Zodiac E30iQ Variable Speed Pump
Connected and Energy Efficient, suitable for all types of water treatment and for all types of pools up to 120M3
.Video Presentation Zodiac E30iQ
Features of the Zodiac E30iQ
Guaranteed Energy Savings
The new Zodiac E30iQ manages to reduce electricity consumption by up to 80% thanks to its variable speed, and can run longer at a lower speed.
3 programmable speeds ranging from 40 to 100% at maximum speed as it is able to adapt to the needs of each pool while optimizing energy consumption.
Low noise level
The Zodiac E30iQ is up to 12dB quieter than any other type of pump operating with standard filtration.
Control with iAqualink
The E30iQ implements built-in connectivity and an LCD control screen that allows you to easily configure and control the pump.
In combination with the iAqualink you will have improved and easier control from anywhere at any time, including software updates.
Easy to Install and Easy to Maintain
Two of the main benefits of these pumps is that thanks to their "Easy Retrofit" system they can be installed without having to change the piping, as they are compatible with most existing installations.
Including a pre-filter basket that is 117% larger provides greater capacity and will collect more debris without the need to clean the filter.
Zodiac E30iQ Pump Technical Information
Comparison of the Zodiac OV range of cleaners
*Scroll horizontally to view complete table
| Models | E30iQ 100 | E30iQ 200 |
| User interface | Single-line LCD display (blank display) | Single-line LCD display (blank display) |
| Speeds | 3 programmable speeds. Factory settings: ECO (50 %), CLEAN (75 %) and BOOST (100 %) | 3 programmable speeds. Factory settings: ECO (50 %), CLEAN (75 %) and BOOST (100 %) | .
| Use | Fresh and salt water up to 6 g/l (6000 ppm) | Fresh and salt water up to 6 g/l (6000 ppm) |
| Power output (P2) | 1.0 HP / 0.75 kW | 2.0 HP / 1.5 kW |
| Flow at 10 m head | 15.4 m3/h (at 100%) | 25 m3/h (at 100%) |
| Maximum flow rate | 23 m3/h | 34 m3/h |
| Manometric head maximum | 18 m | 20.4 m |
| Volume of the pre-filter basket | 2.6 L | 2.6 L |
| Engine type | Synchronous motor (ECM* technology), TEFC**, insulation class F | Synchronous motor (ECM* technology), TEFC**, class F insulation |
| Power supply | 230 VAC - 50/60 Hz | 230 VAC - 50/60 Hz |
