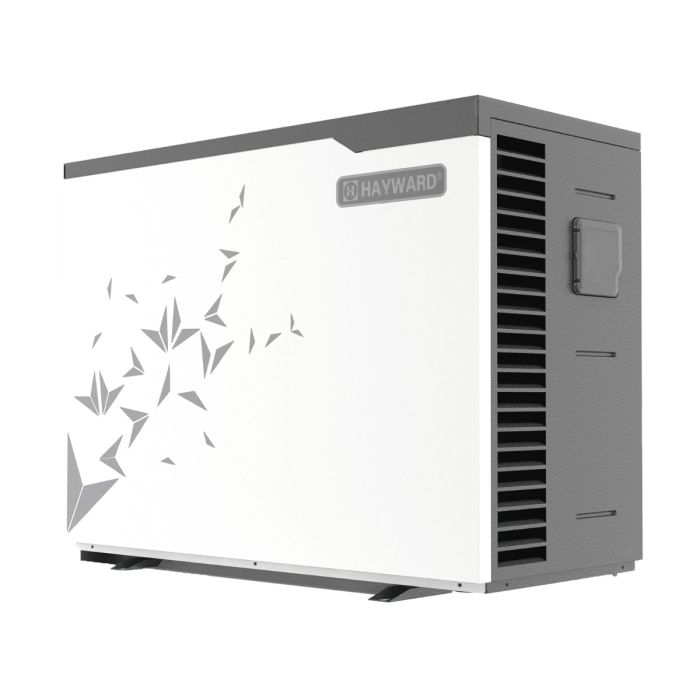

Hayward S.Line Pro Fi Heat Pump
Hayward heat pump elegant and discreet, in harmony with the outdoor environment. The S.Line Pro Fi heat pump is powerful and quiet, with an improved heat exchange design, and includes an intelligent control system that allows a perfect balance between efficiency and savings. Splendid performance from a heat pump with a very good quality/price ratio.
Manuals
Hayward S.Line Pro Fi User Manual
Technical Data Hayward S.Line Pro Fi
Video Presentation Heat Pump Hayward S.Line Pro Fi
Hayward S.Line Pro Fi Heat Pump Features
This heat pump is the first heat pump with side ventilation created by Hayward.
Two-sided airflow dischargeThe fan blades have an improved fan blade shape and side panel outlet design for enhanced airflow:
- Heat exchange efficiency
- Air discharge
- Perfect for small spaces. Distance to the wall at the rear: minimum 20 cm
Full inverter technologyincorporating the combination of the best rotary compressors and a CC Inverter fan.
Intelligent control system with precise adjustment of the perfect balance between heating comfort and energy savings.
Super quiet and highly efficient during operation thanks to lower air flow velocity.
Powerful: Accelerates temperature rise just when needed and can operate down to -10° ambient temperature.
User interface easy, tactile and fast via Bluetooth® connection.
Connectivity: Bluetooth® (standard) and Wi-Fi (optional).
Sustainable thanks to its selected noble, durable and high quality materials.
Corrosion- and UV-resistant metal housingmetallic finish paint.
Titanium heat exchanger: Compatible with all types of water treatments (salt, chlorine, UV, chemicals...) and high durability.
Reversible mode by cycle reversal to obtain the best performance when the temperature is at its highest, the pump lowers the water temperature to a more comfortable level.
Low consumption.
Wintering cover included. to ensure the protection of the pump until the next pool season.
Anti-vibration plugs included.
3 years official warranty.
Available in 3 powers: ( 8Kw, 11Kw and 15Kw ).
R32 refrigerant
Higher performance
- 60 % less greenhouse gas emissions
- Requires 10% less fluid volume than R410A
- Easy to use and recycle
- Does not affect the ozone layer at all. Complies with European F-gas regulations.
S.Line Pro Fi heat pumps comparison table
| SPECIFICATIONS | HP5081DT3LV | HP5111DT3LV | HP5151DT3LV |
|---|---|---|---|
| Power supply | 220 V-240 V /1 ph/50 Hz | ||
| Refrigerant | R32 | ||
| Refrigerant mass (kg) | 0,45 | 0,50 | 0,65 |
| Mass in TeqCO2 | 0,30 | 0,34 | 0,44 |
| Heating capacity range Air 27°C - RH 78 % - Water 26°C (kW) |
2,83 - 8,16 | 1,95 - 10,90 | 5,27 - 15,66 |
| Absorbed electrical power (1) (kW) | 0,212 - 1,19 | 0,150 - 1,92 | 0,457 - 2,80 |
| Absorbed current (1) (A) | 1,41 - 5,20 | 1,05 - 8,49 | 2,04 - 12,28 |
| COP | 13,30 - 6,81 | 12,92 - 5,67 | 11,53 - 5,59 |
| Heating power range Air 15°C - Hr 71 % - Water 26°C (kW) |
1,77 - 5,91 | 1,86 - 8,40 | 3,81 - 11,67 |
| Absorbed electrical power (2) (kW) | 0,31 - 1,28 | 0,30 - 1,83 | 0,58 - 2,71 |
| COP | 5,70 - 4,62 | 6,20 - 4,59 | 6,48 - 4,31 |
| Nominal water flow rate (m³/h) | 3,50 | 4,60 | 6,70 |
| Sound pressure level at 1 m (dB(A) | 45,1 | 48,6 | 54,1 |
| Sound pressure level at 10 m (dB(A) | 27,9 | 31,6 | 36,9 |
| Number of fans | 1 | ||
| Fan speed (rpm) | 500 - 800 | 500 - 900 | 500 - 750 |
| Fan silent mode (rpm) | 500 | ||
| Compressor Type | Twin Rotary | ||
| Reversible heat pump | Yes | ||
| Defrost mode | Yes | ||
| Silent mode | Yes | ||
| Winterizing cover | Provided | Provided | |
| Function Priority heating | Yes | ||
| Anti-vibration supports | Yes | ||
| User control box | Bluetooth LCD | ||
| Unit net dimensions (mm) | 1011 x 430 x 622 | 1025 x 480 x 768 | |
| Weight (kg) | 61 | 87 | |
