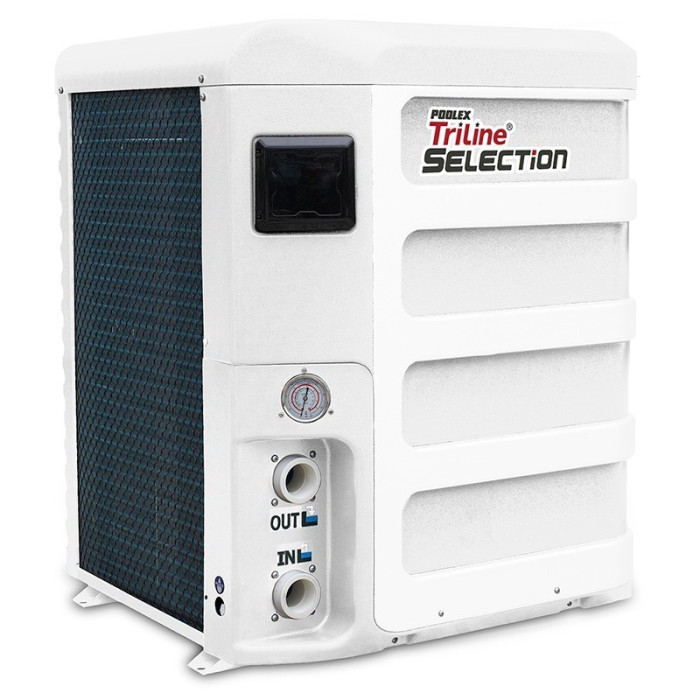

Poolex Triline Selection heat pump

Poolex Triline Selection heat pump

*Scroll horizontally to view full table

Model		Triline Selection 210	Triline Selection 250	Triline Selection 300
Reference		PC-TLS210	PC-TLS250	PC-TLS300
Pool volume (m3)		80 - 110	100 - 135	120 - 160
Condition*: Air 26°C Water 26°C Humidity 80%.	Capacity ( (W)	21010	25620	30660
	Power consumption (W)	3410	4160	4970
	COR	6,16	6,16	6,17
Condition**: Air 15°C Water 26°C Humidity 70%.	Capacity (W)	15020	18060	22010
	Power consumption (W)	2950	3550	4320
	COR	5,11	5,08	5,10
Power supply		Tri 380-415V/50Hz
Maximum power (W)		5530	6710	8190
Maximum current (A)		8,43	10,23	12,5
Heating temperature range		12°C/40°C
Operating range		-5°C/43°C
Flow rate (m3/h)		4,2 ~ 8,5	5,1 ~ 10,3	6,3 ~ 12,5
Refrigerant		R410A
Package dimensions (mm)		745x745x1035
Dimensions (mm)		740x700x900
Net/gross weight (kg)		102/115	109/122	114/127
Noise at 1 m (dB(A))		<51	<52	<53
Noise at 4 m (dB(A))		<41	<42	<43
Noise at 10 m (dB(A))		<32	<33	<34
Compressor type		rotary	Scroll
Compressor brand		Mitsubishi	Panasonic
Function		automatic / heating / cooling
Loss on load (mCE)		1,5	1,5	1,8

* Under conditions Air 26°C, Water 26°C, and Humidity 80% certified by TÜV

** European standard in conditions Air 15°C, Water 26°C, and Humidity 70% certified by TÜV

Attention

Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, pool use, desired temperature, etc. To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without prior thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
