Hayward Easy Temp ECP Heat Pump

Range Comparison

Model	ECP06	ECP08	ECP11	ECP13	ECP15
Heat capacity (@*)	5.5 kW	8 kW	11 kW	13,5 kW	15.2 kW
Heating capacity (@**)	4.2 kW	6.1 kW	8.8 kW	10.4 kW	12.3 kW
BTU/h	18785	27322	37566	46105	51228
Electrical power absorbed* - Kw	1,17	1,8	2,43	3	3,13
Absorbed current.* - A	5,19	7,91	11,81	14,5	16
COP (@*)	4,7	4,4	4,5	4,5	4,8
COP (@**)	3,8	3,7	3,9	3,8	3,9
Power supply - V/Ph/Hz	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50
Defrost mode	By cycle reversal	By cycle inversion	By cycle inversion	By cycle inversion	By cycle inversion
Compressor type	Rotary	Rotary	Rotary	Rotary	Rotary
Number of fans	1	1	1	1	1
Fan power - Watt	120	120	120	120	120
Fan rotation speed - RPM	770	850	850	850	850
Fan direction	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal
Sound pressure @ 1 meter dB(A)	47	51	54	56	56
Sound pressure @ 10 meters dB(A)	29,2	33,2	37,2	37,3	37,3
Hydraulic connection - mm	50	50	50	50	50
Water flow rate - m3/h	2,3	3,0	4,5	5,3	6,6
Pressure drop in water (max) - kPa	5,4	8,9	19,20	5,2	40
Unit dimensions (L/L/A) - mm	970/430/710	1120/480/810	1120/480/810	1230/510/1020	1230/510/1020
Net weight / transport weight - mm	47/53	55/60	55/60	105/115	110/120
Refrigerant	R410A	R410A	R410A	R410A	R410A
Winterizing Cover	Yes	Yes	Yes	Yes	Yes

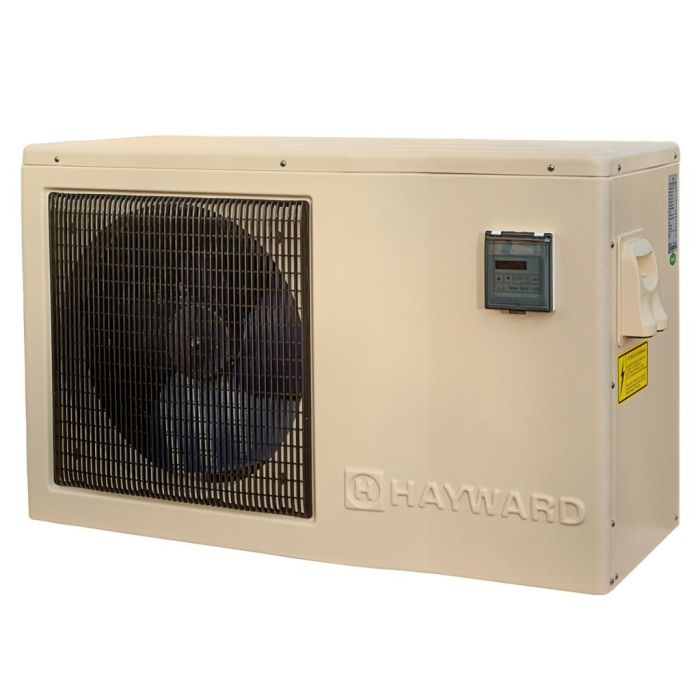

Hayward Easy Temp Heat Pump ECP08 8 KW

This new range of heat pumps, presented in 5 references is ideal for small to medium size pools.

The Easy Temp range offers an unbeatable quality-price ratio and is compatible with all treatments, since the PVS and Titanium heat exchanger resists both prolonged exposure to chlorine and the salt required for electrolyzers.

ADVANTAGES

• Ideal for keeping your pool water at the desired temperature.
• Reversible heat pump
• Priority heating function
• Reduced noise level, thanks to its super quiet compressor
• Automatic hot / cold mode

RESULTS

Reversible heat pump, to heat and cool your pool with electronic defrost management for operation down to -2°C.

Reduced noise level, thanks to its super silent compressor.

Cop higher than 4.3.

MAINTENANCE

Electronic control panel for efficient and simplified operation.

The ergonomic and unobtrusive electronic display allows easy viewing and adjustment of the heat pump's operating parameters.

Easy to install and maintain: connection by Ø 50 mm union provided, external box for simplified electrical connection, drain pipe, sold with a protective cover for wintering.

RESISTANCE

Durability: ultra-resistant Titanium-PVC exchanger compatible with all types of treatment, including electrolysis.

Double pass system to optimize heat transfer.

ABS case, treated against UV.

Attention

Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, pool use, desired temperature, etc. To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without prior thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
