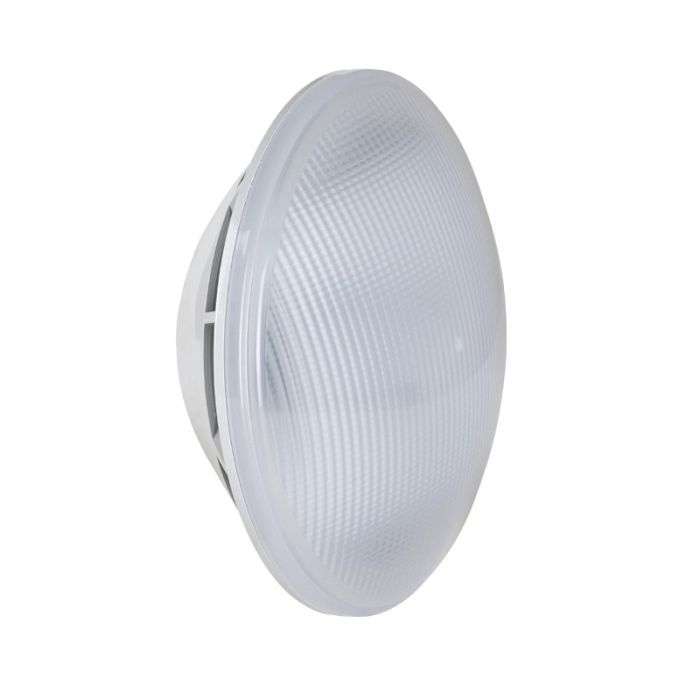

Astralpool Lumiplus Essential PAR56 lamp
Lumiplus Led lamp by Astralpool to illuminate your pool.
The LumiPlus PAR56 lamp, substantially improves the light of your pool and reduces its consumption drastically, available in white or RGB light.
It must be connected to 12V AC by means of a safety transformer and must always be switched on completely submerged in water.
It can be installed in any underwater projector containing a PAR56 lamp.
Manuals
Astralpool Lumiplus Essential Lighting Catalogue
Astralpool Lumiplus Essential PAR56 technical sheet
Installation Manual Astralpool Lumiplus Essential PAR56 Lamp White Light
Astralpool Installation Manual Lumiplus Essential PAR56 RGB lamp
AstralPool Lumiplus Essential PAR56 Lamp
Projectors with LED PAR56 lamp, developed for maximum efficiency in power consumption.
LEDs have a lifetime of 100,000 hours compared to 1,000 hours for conventional lamps and each LED bulb saves more than 90% in energy consumption.
The LED light incorporates maximum brightness LEDs in red, blue and green. The combination of these basic colors results in a myriad of different colors, all very bright and vivid.
Advantages
- Easy installation, ready to use in 10 minutes.
- Saves up to 92% of energy thanks to the higher energy efficiency of this technology.
- Meets the energy efficiency requirements of the new European Ecodesign Directives applicable to Energy-using Products, which will be mandatory in the coming years.
Features
- AC version: 12V AC
- Protection: IP68
- Always to be installed submerged in water.
Comparison of Lumiplus Essential PAR56 Astralpool lamps
| Code | Model | Color Light | Consumption | Luminous flux | Voltage | Energy Efficiency |
|---|---|---|---|---|---|---|
| 73761 | LumiPlus Led Essential PAR56 White | White Light | 14.5W (20VA) | 1,485 lm | 12 V | E |
| 75767 | LumiPlus Led Essential PAR56 RGB | RGB Light | 22W (29VA) | 1,100 lm | 12 V | G |
Astralpool lighting recommendations
To properly illuminate a pool, it is recommended to install a lamp from the LumiPlus family every 20 m2 of water surface.
The projectors should always be installed submerged in water.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th. See conditions in the Warranty Document.
Ficha Técnica
Ficha Técnica Astralpool LumiPlus Essential PAR56
Dibujo Técnico
Dibujo Técnico Lámpara Lumiplus Essential PAR56 Blanca
Dibujo Técnico Lámpara Lumiplus Essential PAR56 RGB
Manuales
Manual Instalación Astralpool Lámpara Lumiplus Essential PAR56 Luz Blanca
Manual Instalación Astralpool Lámpara Lumiplus Essential PAR56 RGB
| 73761 | 75767 | |
| TIPO DE LUZ | BLANCA | RGB |
|---|---|---|
| VOLTAJE | 12V AC | 12V AC |
| POTENCIA | 14,5 W | 22 W |
| CONSUMO | 20 VA | 29 VA |
| FLUJO LUMINOSO | 1485 lm | 1100 lm |
| CLASE ENERGÉTICA Según UE 2019/2015 |
 |
 |
