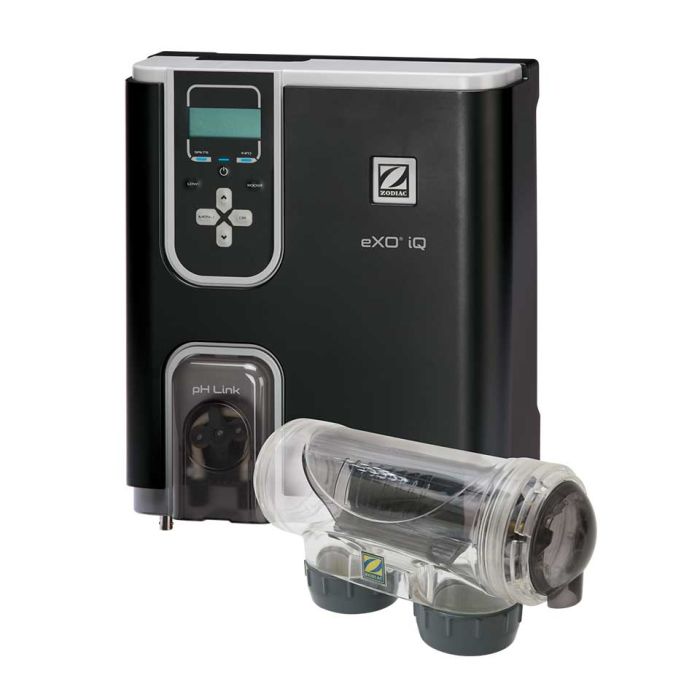

Zodiac eXO iQ salt water chlorinator
The Zodiac eXO iQ Salt Chlorinator is an advanced device designed to simplify and improve pool maintenance. This equipment combines the proven efficiency of salt chlorination with state-of-the-art features, such as a backlit LCD display and integrated connectivity to control your chlorinator through the iAquaLink mobile app.
Models available from 10 to 35 gr/h
Manuals
Technical Data Zodiac eXO iQ salt water chlorinator
Zodiac eXO iQ salt water chlorinator Installation Manual
Warranties Zodiac eXO iQ salt water chlorinator
Video
Zodiac eXO iQ salt water chlorinator
The Zodiac eXO iQ Salt Chlorinator is an innovative solution for pool water treatment that combines the efficiency of salt chlorination with cutting-edge features and advanced technology.
By having a 10,000-hour cell life, replacement and maintenance costs are minimized over the years. This translates into significant savings compared to other systems that require more frequent cell changes.
The heart of this system is its ability to produce chlorine autonomously from common salt dissolved in the pool water. This eliminates the need to purchase and store chemical chlorine, which saves time and money in the long run. Salt chlorination also provides a gentle and effective way to keep pool water sanitized, avoiding the odors and skin and eye irritation associated with traditional chlorine.
Salt chlorinators are an automatic and effective disinfection solution. They are easy to use and provide complete water treatment and reduced maintenance.
One of the most notable features of the Zodiac eXO iQ is its backlit LCD display. This intuitive, high-visibility display allows you to easily monitor and adjust chlorine levels and other chlorinator settings, even in low light conditions or at night. This makes managing your chlorination system much easier.
Integrated connectivity
Built-in connectivity with the iAquaLink mobile app takes convenience to another level. With this app, you can control your Zodiac eXO iQ Salt Chlorinator from your smartphone or tablet, wherever you are. From the app, you can check the chlorinator's status, adjust chlorine levels and program custom chlorination cycles.
Zodiac eXO iQ models
*Scroll horizontally to view the complete table.
| MODELS |  eXO iQ 10 |
eXO iQ 18 |
eXO iQ 22 |
eXO iQ 35 |
|---|---|---|---|---|
| Volume of treated water (warm climate, filtration 12h/day) | 40 m³ | 70 m³ | 100 m³ | 150 m³ |
| Nominal chlorine production | 10 g/h | 18 g/h | 22 g/h | 35 g/h |
Technical characteristics
*Scroll horizontally to view full table
| Cell lifetime | 10,000 h (titanium plates, ruthenium SC6 treatment) |
|---|---|
| Power supply | 195 W / 110-240 VAC / 50-60 Hz |
| Minimum flow rate (required to purge air from cell) | 5 m³ / h |
| Maximum flow rate (limited by the head losses of the installation) | 18 m³/h (Bypass mandatory for higher flow rates) |
| Maximum authorized cell pressure | 2.75 bar (KPa) |
| Maximum water temperature | 40 °C |
| Minimum water temperature | 5 °C |
| Cable length power supply - cell | 1,8 m |
| Protection index | IP43 |
| Cell dimensions (L x W x H) | 32 x 13.5 x 11 cm |
| Dimensions of the control unit (L x W x H) | 32 x 37 x 12 cm |
Included accessories
- Wall mounting kit.
- Flow detector kit.
- Kit reducers to glue.
- Temperature sensor kit.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
3 years unconditional warranty (instrument), 2 years (pH probe), 1 year (ORP probe).
